TG8000 Winch
$419.00
The TG8000 is one of the toughest, most reliable winches in the world. With an industry first IP68 rating (Ingress Protection Rating), the TG8000 also meets all SAE-J706 standards for rating winches. With 17 internal seals, it is completely protected from the elements and is 100% water proof and dust/sand proof
What is IP68?
- IP = Ingress Protection Rating
- The “6” in the IP rating equals the highest dust rating - No ingress of dust; complete protection against contact.
- The "8" in the IP rating equals the highest protection against total immersion - Immersion beyond one meter.
The TG8000 is far ahead of its competitors. With a 5.5 HP series wound motor, three stage planetary gear system, 218:1 gear ratio, and automatic load holding brake, you can count on this winch in any situation. Included with your TG8000 is a very smart, ergonomically designed remote control with a 10’ cord and very functional sealed switch. Also included is a roller fairlead, a hook, and all the necessary mounting hardware.
Kit Includes:
- TG8000 Winch
- Sealed Remote Switch with 10' Cord
- Roller Fairlead
- Hook
- Mounting Hardware
TG Winch, 180198-KIT, $419
TG8000 Winch Recovery Package
$629.00
The TG8000 is one of the toughest, most reliable winches in the world. With an industry first IP68 rating (Ingress Protection Rating), the TG8000 also meets all SAE-J706 standards for rating winches. With 17 internal seals, it is completely protected from the elements and is 100% water proof and dust/sand proof
What is IP68?
- IP = Ingress Protection Rating
- The “6” in the IP rating equals the highest dust rating - No ingress of dust; complete protection against contact.
- The "8" in the IP rating equals the highest protection against total immersion - Immersion beyond one meter.
The TG8000 is far ahead of its competitors. With a 5.5 HP series wound motor, three stage planetary gear system, 218:1 gear ratio, and automatic load holding brake, you can count on this winch in any situation. Included with your TG8000 is a very smart, ergonomically designed remote control with a 10’ cord and very functional sealed switch. Also included is a roller fairlead, a hook, and all the necessary mounting hardware.
Kit Includes:
- TG8000 Winch
- Sealed Remote Switch with 10' Cord
- Roller Fairlead
- Hook
- Mounting Hardware
- Aluminum Hawse Fairlead
- Shackle D-Ring
- 100' 3/8" Nylon Winch Line
- 2"x20' Recovery Strap
TG Winch, 186101-KIT, $629
Retail value of added parts is $305, you save $105 when ordering this kit.
Rock Recovery™ Straps
$28.00
We all know that recovery is just a natural part of four wheeling and rock crawling, and we also know how it feels to not have the right recovery equipment when you need it. That is why Trail-Gear has looked long and hard to find just the right recovery straps for rock crawling and extreme four wheeling.
Our Rock Recovery™ Straps are made from 100% high-tenacity, polyester double ply webbing that is UV and abrasion resistant. The eyelets or loops are reinforced with an abrasion resistant material for maximum strength and durability. The load or tow rating on the 2” wide straps is 18,000lbs, and the 3” wide straps have a tow or load rating of 35,000lbs.
Available options:
- Recovery Strap, 2" x 20', 180050-K, $28
- Recovery Strap, 2" x 30', 180051-K, $34
- Recovery Strap, 3" x 20', 180052-K, $39
- Recovery Strap, 3" x 30', 180053-K, $44
Rock Recovery™ Winch Line
$63.00
Trail-Gear knows that when it is time for a recovery that the last thing you need is a broken winch line, so we made our Rock Recovery™ Winch Line from 100% pure Dyneema Fiber (SK-75), which is the strongest and most UV resistant material in the world for synthetic winch lines. Our Rock Recovery™ Winch Lines come with a stainless steel thimble and are all pre-stretched, 12-strand braids. They also come with the first 5 feet covered with a black nylon sleeve to protect the line from rocks and trees.
Synthetic winch line is about 45% stronger than conventional steel cable and weighs only a fraction of what steel cable weighs. In fact, synthetic winch line is so light it floats on water. When steel cable winch line fails, breaks, or comes off of the attachment point it recoils from stored energy, snaps back, and can be deadly. There is almost no snap back at all with synthetic winch line because it does not store energy like the steel cable, this is why steel cable winch line is no longer permitted at most off road competitions or races. Synthetic winch line is very flexible, but does not curl or kink and will never cut your fingers.
| Diameter | Length | Maximum Breaking Strength |
|---|---|---|
| 3/8" | 50' | 18,000lb. |
| 3/8" | 75' | 18,000lb. |
| 3/8" | 100' | 18,000lb. |
| 5/16" | 25' | 13,000lb. |
| 5/16" | 50' | 13,000lb. |
Available Options:
-
Rock Recovery™ Winch Line, 3/8" x 50', 180132-K, $167 - Rock Recovery™ Winch Line, 3/8" x 75', 180131-K, $219
- Rock Recovery™ Winch Line, 3/8" x 100', 180130-K, $240
- Rock Recovery™ Winch Line, 5/16" x 25', 180133-K, $63
- Rock Recovery™ Winch Line, 5/16" x 50', 180161-K, $83
Rock Recovery™ Suspension Winch 3000
$114.00
Trail-Gear understands when you have a link or even leaf sprung suspension, that during a vertical climb or decent, your suspension will unload making your truck less stable as the center of gravity becomes higher. Our answer to this problem is a small, easy to mount suspension winch that will allow you to stabilize your suspension and effectively control how much suspension droop you have during times when having that control makes all the difference.
Most competition buggies and hard core trail rigs have been using these suspension winches for years to get the job done, so Trail-Gear has decided to offer the Rock Recovery™ Suspension Winch 3000. It is compact, reliable, and easy to install. Everything about the Rock Recovery™ Suspension Winch 3000 is tailored so that installation is a snap.
The power cord is 57” long, so you can install this winch on the front or rear of your truck and have plenty of wire to reach the battery, the control is engineered so that it can be installed by attaching it to a piece of tubing, a shifter, or by using the bracket to fasten it to a switch panel.
The Rock Recovery™ Suspension Winch 3000 is shipped without winch line and can either be used with cable or synthetic winch line. We recommend 25' to 40' of 5/16" winch line for best performance.
Specifications:
- Input: 12V DC 3.9hp/2.9kW
- Output: 1.34hp/1kW
- Line Pull Rating: 3,000 lbs
- Line Capacity: 25'-40' of 5/16" synthetic winch line
- Gear Train: 1 Stage planetary
- Gear Ratio: 153:1
- Clutch: Sliding gear
- Braking action: Automatic in the gear
- Dimensions: 12.6" x 4.45" x 4.13"
- Drum size: 1.24" x 2.88"
- Bolt pattern: 3.13"
- Net weight: 20 lbs
Rock Recovery™ Suspension Winch 3000, 110800-K, $114
Nylon Winch Line Sleeve
$11.00
We all know that synthetic winch line is much safer and easier to use than traditional metal winch line. The issue is that synthetic winch line can be damaged more easily than metal winch line if it is not used properly, or if it is not sufficiently protected from jagged rocks or other sharp and abrasive surfaces. Most winch lines come with a nylon sleeve that can be slid over the rope to protect it from harmful elements that would cut or damage the expensive winch line, but the nylon sleeve itself can become worn, torn, or damaged over time, leaving your winch line exposed.
At this point you can either ignore the issue, allowing your pricy winch line to become damaged and ruined, or you can purchase a replacement nylon sleeve. Trail-Gear is now offering replacement nylon sleeves for your 3/8" or smaller diameter winch line. The sleeve is black in color, 5’ in length and made from 100% nylon so it will slide on your winch line with ease, protecting your investment.
Nylon Winch Line Sleeve, 180160-K, $11
Tube Thimbles
$10.50
Non-tube thimbles can be
crushed and ruined more easily
Synthetic winch line is expensive to replace so it is important to protect your line and make it last as long as possible. We at Trail-Gear understand that, so we developed a stainless steel tube thimble that will protect your line and keep it from twisting and fraying at the ends.
Our tube thimble is easy to install. Simply cut your line down a few inches until you have a new clean piece of line, push the line through the thimble and then braid the line so that the thimble is in place. Thimbles are offered for both 5/16" and 3/8" winch line.
Available Options:
- Tube Thimble, 5/16", 180522-K, $10.50
- Tube Thimble, 3/8", 180523-K, $10.50

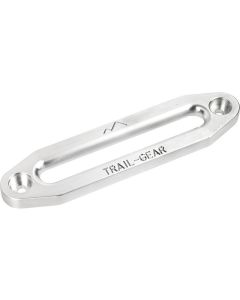

Aluminum Fairlead
$40.00
Polished aluminum hawse fairlead. Designed for use with synthetic winch rope. Mounting holes are 10" on center for standard 3/8" bolts, compatible with most 5,000-9,500lb winches. Ultra smooth guide surface (rounded on both sides) to prevent damage to rope.
Aluminum Fairlead, $40, 183500-K
TG Hi-Lift Jack Mount
$33.00
Trail Gear’s Hi-Lift Jack Mount is laser cut from 3/16” thick steel and then CNC formed. The ends of the mount are coped so that they can be welded to 1 3/4" tubing. We use a 1/2" thick bolt that has a precision hole drilled into it so that a hair-pin/cotter style pin can be inserted. This will keep the nut from rattling off and ensure that you never lose your hi-lift jack on the trail. We also added rubber pads that go between the jack and the mounts and a Velcro strap to hold the handle in place so that no vibration will be heard from any of the mounting locations. A second hole was placed on the mount so that you can put a padlock on the hi-lift to keep it totally secure from loss or theft.
Product is shipped unpainted, must be welded on.
Hi-Lift Jack Mount, 180078-K, $33

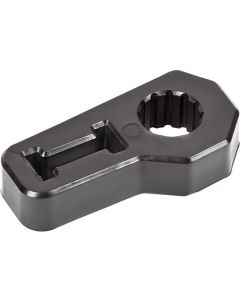

Hi-Lift Jack Rubber Isolator
$12.00
The Trail-Gear hi-lift jack rubber isolator is is the perfect fix for that hi-lift or hi-lift style jack you have rattling around in the back or your truck. The isolator slides onto both the jack and the jack handle keeping them from vibrating together and holding both components firmly in place.
Our Isolator is 100% rubber, black, and very durable. It not only keeps your jack from rattling, but it also keeps your jack handle from bouncing around and doing damage to you or your rig. Every jack should come with one of these, but since they don't, Trail-Gear has you covered.
Hi-Lift Jack Rubber Isolator, 180158-K, $12

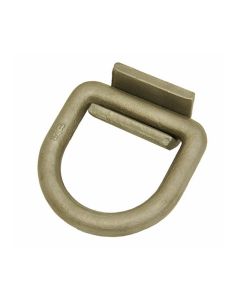

5/8" Weld-On Trailer D-Ring
$12.00
Ideal for creating tie down points on trailers. Welds in place. Super tough, heavy-duty forged design.
- 5/8" Ring Diameter
- Capacity: 18,000 lbs.
- Working Load Limit: 6,000 lbs
- 4 3/8" overall width
Trailer D-Ring 5/8 Inch, $12, 183001-K

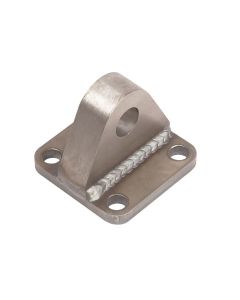

Weld-On Attachment Points
$28.00
Trail-Gear’s Weld-On Attachment Points are machined from Billet 1020 cold rolled steel. They come in two different fitments, one is coped on the bottom so that it can be welded on to a 3" axle tube, and the other has a flat bottom that can be welded to plate, tubing, or any other flat surface. These make great attachment points for any rig or buggy, and work well with our 3/4" Shackle D-Ring. Sold individually.
Available options:
- Weld-On Attachment Point, Flat, 183003-K, $28
- Weld-On Attachment Point, Coped, 183004-K, $28

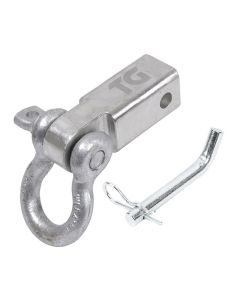

3/4" Receiver Shackle Kit
$33.00

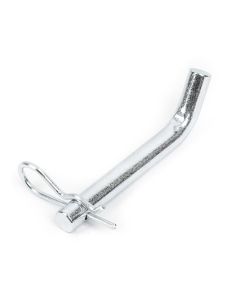

Designed to fit into standard 2" hitch receivers. Makes a great anchor point for winch or strap recoveries. Made from 8620 forged tool steel. Working load limit 4 3/4" tons. Includes 3/4" D-ring and receiver mount. Zinc plated finish. Includes 5/8" hitch pin.
Shackle Receiver, 3/4 Inch, $33, 183002-K

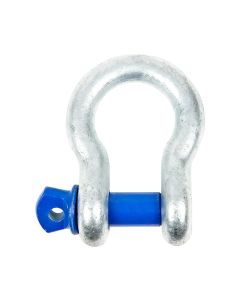

3/4" Shackle D-Ring
$12.00
D-Ring shackles make a great pull point for vehicle recovery. Working load limit 4 3/4" tons.
Shackle D-Ring 3/4 Inch, $12, 181003-K
